F17B+DigitalMultimeterDC/ACAmmeterVoltmeterResistance/Diode/Continuity/Capacitance/Frequency/Temperature Tester

Features:

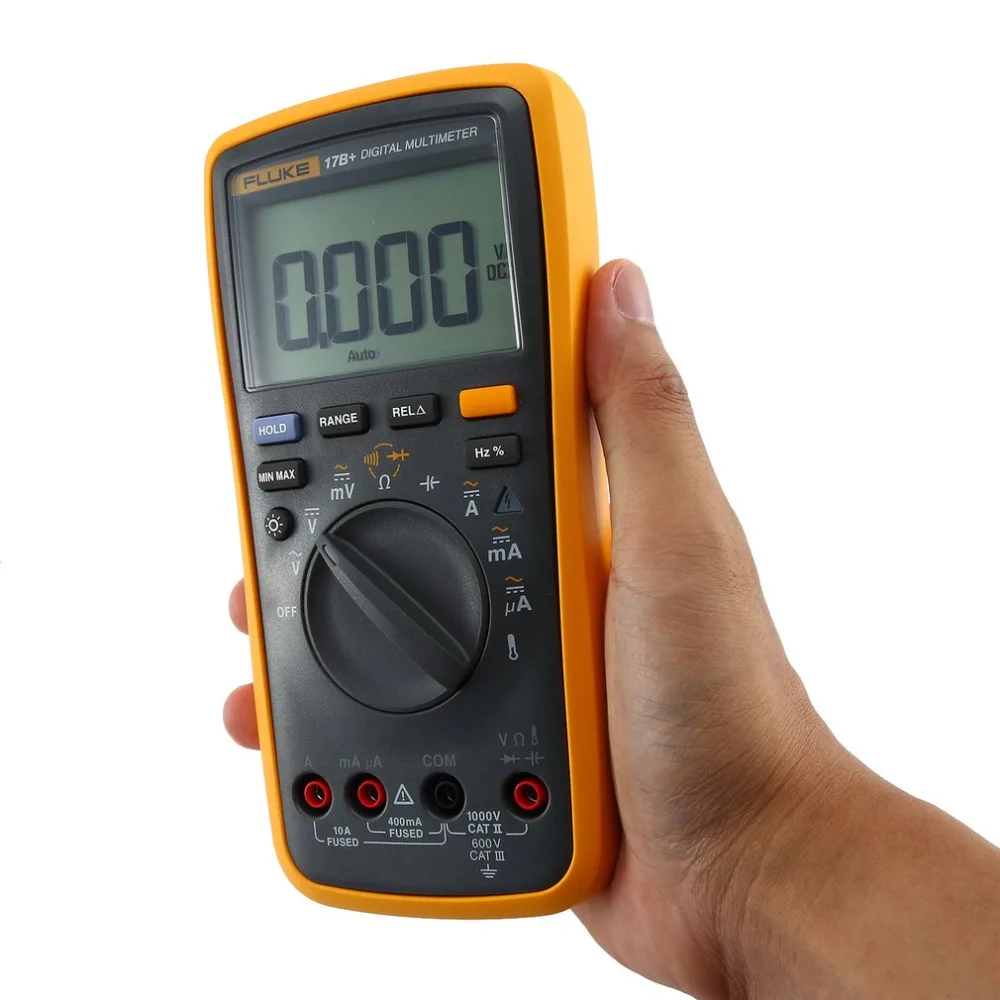

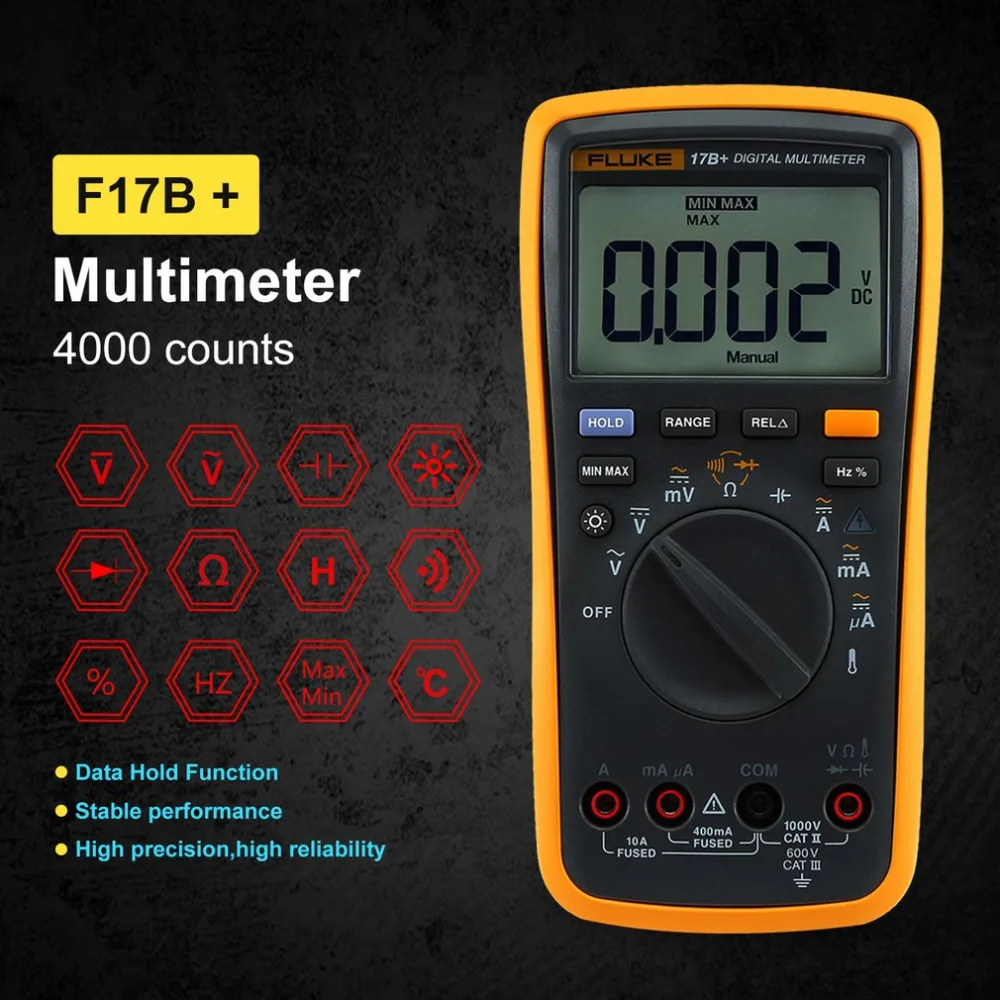

1. This is a pocket-sized automatic digital multimeter.

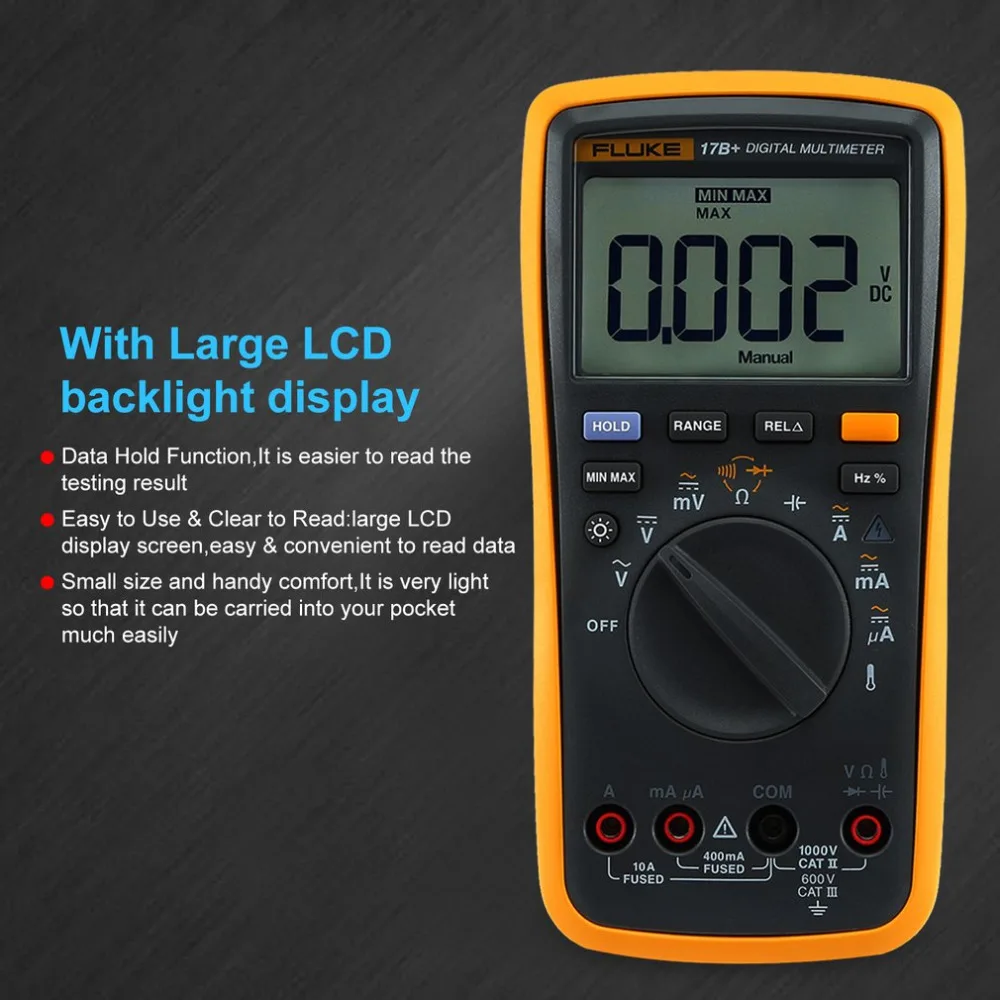

2.With LCD backlight display, convenient to read data in dark.
3. Auto power off, it will auto power off when no operation long time.
4. Data retention, keep the data on the screen for easy recording.
5.Function: DC/AC voltage current test,resistance/capacitance/frequency/ temperature test,data hold,backlight,auto power-off,continuity buzzer test,duty cycle measurement,diode test,max & min value test.

Descriptions:

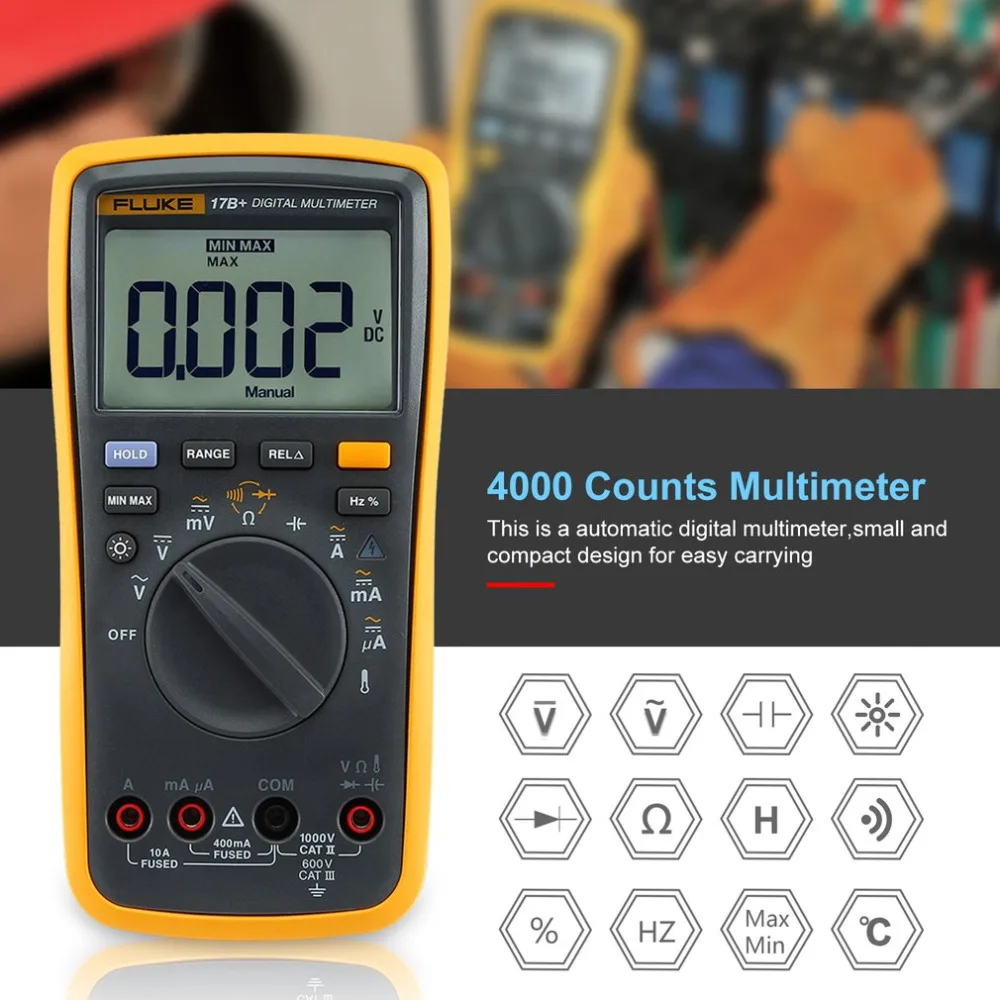

1. This is an automatic digital multimeter, small and compact design for easy carrying.
2.Stable performance, high precision, high reliability, and clear reading.
3. It is an ideal tool and instrument, laboratory, factory, radio enthusiasts, and The ideal tool for the family.

Specifications:
Brand: Fluke
Model: F17B+
Color: Yellow & gray
Material: ABS Plastic
Display count:4000
DC Volts:4.000V/40.00V/400.0V/1000V
Resolution:0.001V/0.01V/0.1V1V
AC Volts(40Hz-500Hz):4.000V/40.00V/400.0V/1000V
Resolution:0.001V/0.01V/0.1V1V
AC Millivolts:400.0mV
Resolution:0.1mV
CC Millivolts:400.0mV
Resolution:0.1mV
AC Current μA(40Hz-400Hz):400.0μA/4000μA
Resolution:0.1μA/1μA
AC Current mA(40Hz-400Hz):40.00mA/400.0mA
Resolution:0.01mA/0.1mA
AC Current A(40Hz-400Hz):4.000A/10.00A
Resolution:0.001A/0.01A
DC Current μA(40Hz-400Hz):400.0μA/4000μA
Resolution:0.1μA/1μA
DC Current mA(40Hz-400Hz):40.00mA/400.0mA
Resolution:0.01mA/0.1mA
DC Current A(40Hz-400Hz):4.000A/10.00A
Resolution:0.001A/0.01A
Resistance test:400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ/40.00MΩ
Resolution:0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
Capacitance test:40.00nF/400.0nF/4.000μF/40.00μF/400.0μF/1000μF/
Resolution:0.01nF/0.1nF/0.001μF/0.01μF/0.1μF/1μF
Accuracy:2%+5, 2%+5, 5%+5, 5%+5, 5%+5
Frequency test:50.00Hz/500.0Hz/5.000kHz/50.00kHz/100.0kHz
Resolution:0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz
Duty cycle:1% to 99%
Temperature measurement:50.0℃~400.0℃/0℃~50.0℃/-55.0℃~0℃
Resolution:0.1℃
Diode test: Yes
Safety level: CAT III
Screen refresh rate : 2 times / second
Power supply :2 x AA, NEDA 15A, IEC LR6(not included)
Product size:185x85x42mm/7.22x3.32x1.64in
Product weight:460g/1.01lb

Package information:
Package weight:733g/1.62lb
Package size:240x150x70mm/9.36x5.85x2.73in
General Box Package

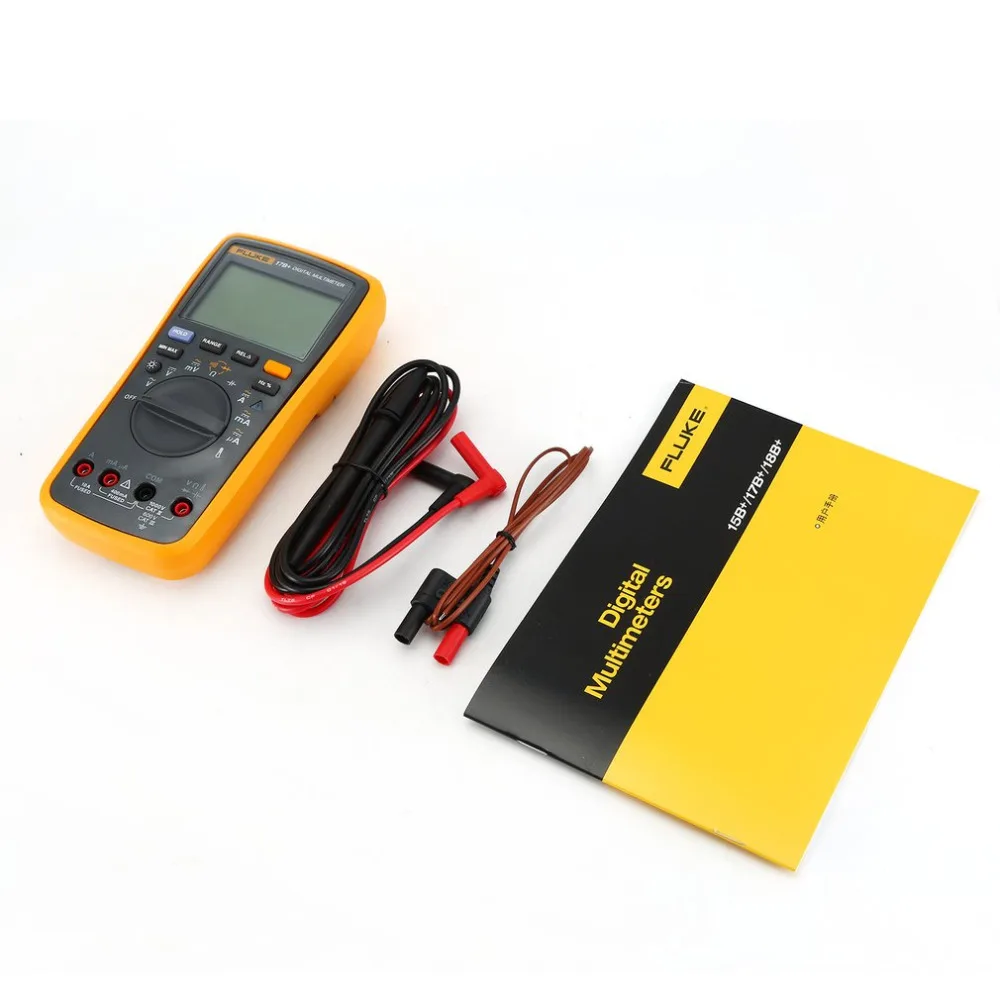

Package included:
1 x Multimeter

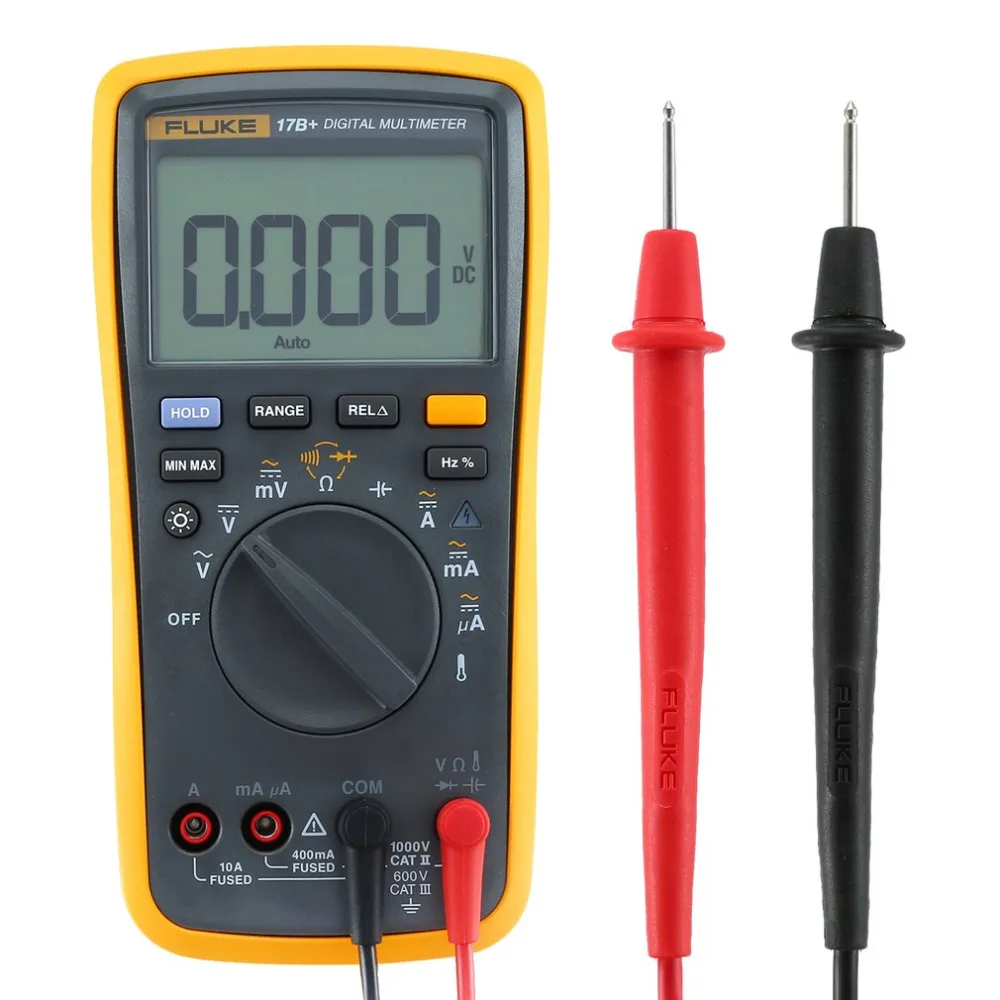

1 x Pair of test leads
1 x Thermocouple
1 x User Manual

Noted:
1. Please allow 1-2mm errors due to manual measurement.
2. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
